Features:
1. Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive
protect mission critical equipment from wide range power quality
issues
2. DSP Digital Control Based
Advance DSP base digital control bring high performance of high
input Power factor, low distortion , supply the load with perfect
sine wave AC power supply
3. Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well
with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically
reduce battery discharge , prolong battery life
4. Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting,
selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and
noise from Genset , provide stable and clean power supply to the
user equipment.
5. High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power
factor, effectively avoid power pollution , save energy expense for
customer
6. Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company
with large span component, greatly improve reliability in harsh
environment, Well designed ventilation and conformal coating ,
avoid dust accumulation ,improve resistant to corrosion
7. Open to customization
Based on powerful controller and open architecture, the product is
able to be customized to match need of integration of automatic
system or intelligent supervisory system
| Model | CNH110-1KR | CNH110-1KRS | CNH110-2KR | CNH110-2KRS | CNH110-3KR | CNH110-3KRS |
| Capacity | VA/W | 1kVA/800W | 2kVA/1.6kW | 3kVA/2.4kW |
| Topology | Double Conversion Online UPS |
| Phase | Single Phase Input Single Phase Output |
| Mains Input | Wiring | L/N+PE |
| Rated Voltage | 208/220/230/240VAC |
| Voltage Range | 90~300VAC |
| Frequency Range | 40Hz-70Hz |
| Input Power Factor | ≥0.99 |
| AC Output | Wiring | L/N+PE |
| Output Voltage | 208/220/230/240VAC |
| Voltage Regulation | ±1% |
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) |
| Waveform | Pure Sine Wave |
| Distortion | <2%(Linear Load) |
| (THDV%) | <7%(None-Linear Load) |
| Over load capability | 1Min@105%~125%Rated Load |
| 30Sec.@125%~150%Rated Load |
| 0.5Sec.@>150%Rated Load |
| Efficiency | AC/AC Mode | 0.88 | 0.89 | 0.9 |
| DC/AC Mode | 0.86 | 0.87 | 0.88 |
| Battery&Charge | Rated Battery Voltage | 24VDC Internal | 36VDC External | 48VDC Internal | 72VDC External | 48VDC Internal | 96VDC External |
| Battery Capacity | 12V/7AH X2pcs | External Battery Depends | 12V/7AHx4pcs | External Battery Depends | 12V/9AH x4pcs | External Battery Depends |
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load |
| Charging Current | Standard Model with Internal Battery:1A |
| Long Backup Time Model :4A |
| Physical | Chassis Style | Rack-Mounted |
| Rack Dimension | 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) |
| 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery |
| Weight (kg) | 13 | 8.5 | 18.5 | 11.5 | 21.9 | 12 |
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health
Status | | | |
| Standards Communication Interface | 1. RS232 PORT |
| Optional Extension Card | 2. NMC Card: Support remote monitor the UPS via Smart Phone APP,
Web page, PC Monitor Software , Support Server / NAS shutdown |
| 3. MODBUS Card, |
| 4. USB Card |
| 5. Relay Card (Needs assembly according to order request before
shipping |
| Operating Environment Endurance | Temperature range | -10~50oC |
| Relative Humidity | 0-98%(Non-condensing) |
| Acoustics Noise | <55dB @ 1 meters |
UPS Outlook③

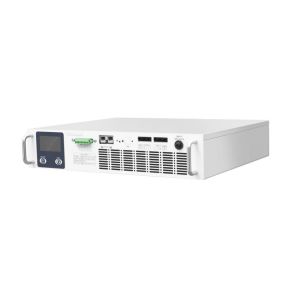

Front View
CNH110-1KR(S)/CNH110-2KR(S)/CNH110-3KR(S) 2U Rack-Mounted UPS
Rear View
CNH110-1KR(S)/CNH110-2KR(S) 2U Rack-Mounted UPS Rear Panel
CNH110-3KR(S) 2U Rack-Mounted UPS Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be
different for countries or regions according to order
④ More parameter customization,please contact sales representative
