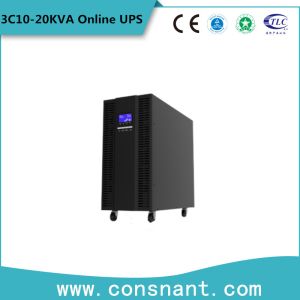

3C10-20kVAONLINE UPS Datasheet
Feature:
Zero Transfer time
True Double Conversion Online UPS, provide most comprehensive
protect mission critical equipment from wide range power quality
issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high
input Power factor, low distortion , supply the load with perfect
sine wave AC power supply
Three Level Inverter
Low harmony noise, high efficiency , excellent loading capability
Versatile input phase
Work with 1phase OR 3phase mains input, without complex setting or
power derating
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well
with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically
reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting,
selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and
noise from Genset , provide stable and clean power supply to the
user equipment
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power
factor, effectively avoid power pollution , save energy expense for
customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company
with large span component, greatly improve reliability in harsh
environment, Well designed ventilation and conformal coating ,
avoid dust accumulation ,improve resistant to corrosion
Open to customization
Based on powerful controller and open architecture, the product is
able to be customized to match need of integration of automatic
system or intelligent supervisory system
Specification:
| Model | 3C10K | 3C10KS | 3C15K | 3C15KS | 3C20K | 3C20KS |
| Capacity | VA/W | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
Topology | Double Conversion Online UPS |
| Phase | Single phase input single phase Output OR 3 Phases Input Single Phase Output |
AC Mains Input | Wiring | Single Phase L/N+PE OR 3 Phases (L1,L2,L3,N)/N+PE |
| Rated Voltage | 208/220/230/240VAC |
| Voltage Range | Line-Neutral 90~300VAC Line-Line 150~500VAC |
| Frequency Range | 40Hz-70Hz |
| Input Power Factor | ≥0.99 |
| AC Output | Wiring | L/N+PE |
| Rated Output Voltage | 208/220/230/240VAC |
| Voltage Regulation | ±1% |
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) |
| Waveform | Pure Sine Wave |
| Distortion (THDV%) | <2%(Linear Load) |
| | <7%(None-Linear Load) |
| Over load capability | 10Min@105%~125%Rated Load 60Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
| Efficiency | AC/AC Mode | >94% |
| DC/AC Mode | >92% |
Battery & Charge | Rated Battery Voltage | 192VDC Internal | 192/240VDC External | 192VDC Internal | 192/240VDC External | 192VDC Internal | 192/240VDC External |
| Battery Capacity | 12V/7AH X16pcs | External Battery Depends | 12V/7AH x32pcs | External Battery Depends | 12V/7AH x32pcs | External Battery Depends |
| Backup Time | >6mins @ Half Load | | >8mins @ Half Load | | >6mins @ Half Load | |
| Charging Current | Standard Model with Internal Battery:1A Long Backup Time Model :4A |
| Physical | Chassis Style | RACK / Tower (separated) |
| Tower Dimension | 3C10kS: 190(W)X340(H)x535(D)mm 3C15/20kS: 238(W)X528(H)x540(D)mm |
| Rack Dimension | 3C10kSR: 438mm(W) x 132mm(3U)(H) x 500mm(D) 3C15kSR/3C20kSR:4U 438(W)x176(H)x530(D)MM |
| Weight (kg) | 8.9 | 4.2 | 14 | 5.9 | 21.6 | 8.3 |
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health
Status |
| Standards COMMUNICATION | 1. RS232 PORT 2. NMC Card: Support remote monitor the UPS via Smart Phone APP,
Web page, PC Monitor Software , Support Server / NAS shutdown |
| Optional Extension Card | CMC MODBUS Card, USB Card, Relay Card (Needs assembly according to order request before shipping) |
Operating Environment Endurance | Temperature range | -10~50oC |
| Relative Humidity | 0-98%(Non-condensing) |
| Acoustics Noise | <60dB @ 1 meters |
